What We Do
WNACA represent Schutten Solar as our main product for urban development projects, residential, commercial applications, Oil and Gas applications for Myanmar as well as regional. We provide complete solutions on solar panel systems on-grid, off grid, combined wind turbine systems, solar pumps systems for agriculture, irrigation, others applications. Solar panel for hazardous area like offshore platforms, remote wellhead platforms, remote well monitoring systems (Class 1, Division 2 Approved). Solar and generator combined UPS systems for telecommunication towers. Also available for combined Solar and Wind Turbine Street Lighting systems.

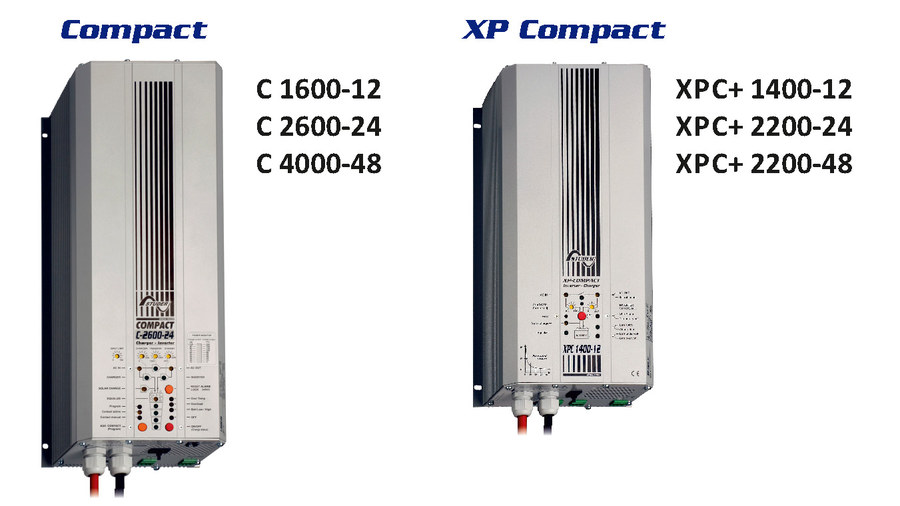

Compact series
The Compact series includes devices with a power level ranging from 1.1kVA to 4kVA that allow for optimal use of available energy,
either as an off-grid inverter, battery charger or solar charge controller.
This range of robust products ready to be used offers an excellent price/efficiency relationship.
For 12, 24, or 48V battery banks.

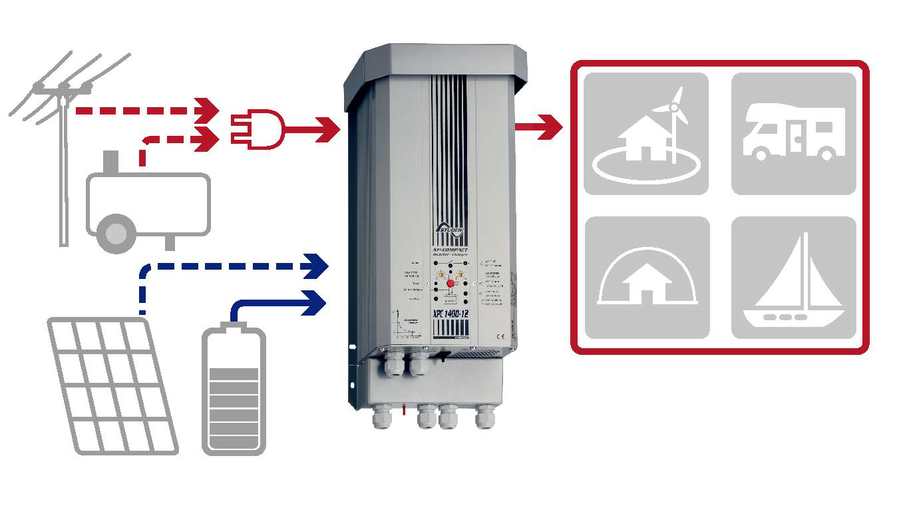

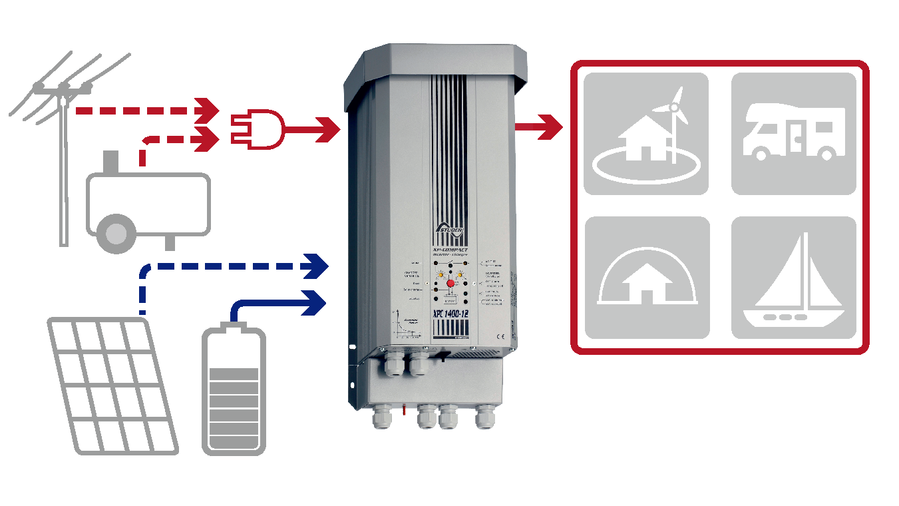

All in one
Every product of Compact series combine 3 functions: performing standalone inverter, powerful battery charger and ultra-fast transfer system. All in a robust casing.
Equipped with a programmable auxiliary contact, it allows the start of a generator or second priority load shedding.

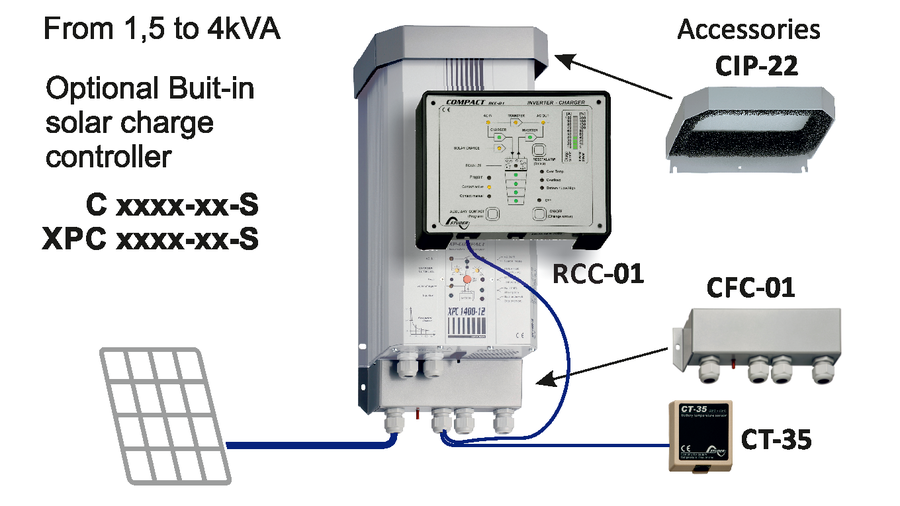

Also these inverter-chargers can be supplied in option with a built-in PWM solar charge controller,

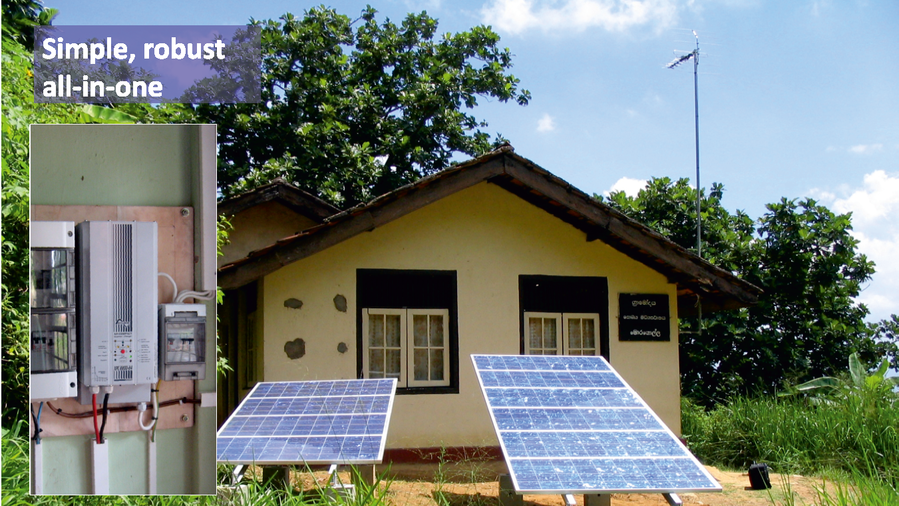

making them an “all-in-one” solar hybrid system, or a simple self-consumption/backup system.
Ready to use
In addition to their compact construction, these devices are shipped with battery cables already assembled, reducing the system installation and commissioning costs.
The primary parameter adjustments can be done directly on the screen on the device, that also allows to see the different modes of the inverter.
Excellent relationship between price and features
The Compact is a high value Swiss product that brings together the essential functions of a robust and compact construction,
meeting all requirements, and with an excellent price-features relationship.
|
Power P30 / Pnom [VA] |
Battery voltage Unom [V] |
Corriente de carga máx. Imax [A] |
Solar charge controller current (opt.) Imax [A] |
| XPC+ 1400-12 |
1400 / 1100 |
12 |
45 |
30 |
| XPC+ 2200-24 |
2200 / 1600 |
24 |
37 |
30 |
| XPC+ 2200-48 |
2200 / 1600 |
48 |
20 |
20 |
| C 1600-12 |
1600 / 1300 |
12 |
55 |
30 |
| C 2600-24 |
2600 / 2300 |
24 |
55 |
30 |
| C 4000-48 |
4000 / 3500 |
48 |
48 |
20 |
- True sine wave voltage
- Suitable for any kind of electrical appliance
- Reliable and silent working with all kind of loads
- Outstanding overload capabilities
- Stand-by level adjustable over a large range and from a very low threshold
- 4 STEP battery charger with PFC (Power Factor Correction)
- Ultra-fast transfer relay
- High efficiency
- Full internal protection
- Ultra-fast regulation
- Microprocessor controlled
E Certification Standard
The XPC+ 1400-12, XPC+ 2200-24, C 1600-12 and C 2600-24 are certified in accordance with the ECE-R 10 standard.
This certification is mandatory in the European Union for all electrical equipment on board transport vehicles.
